Slitting Machine

Brief introduction:
Having 16 years experience, China Changsheng has committed itself to designing and manufacturing slitting machine. This kind of slitting machine also called plate slitter. We can customize every client requirements, even exceeds your requirements.
We offer various specification of silting machine below. If you be interested in any of our products, please contact us.

Features:
1. The slitting machine has the auto roll lock differential air shafts, and touch control screen.

2. Laser core positioning and automatic knife positioning improve the accuracy of this plate slitter.
3. Servo lay-on roller system and file management for repeatability improve the working performance of this equipment.

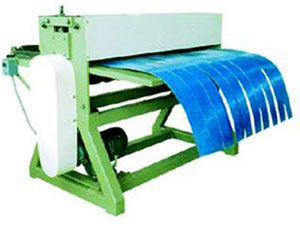

Slitting Machine

Technical Specification of Slitting Machine

Type Thickness of board that can be cut (mm) Width of board that can be cut (mm) Times of the journey(time/minute) Cut angle Rear bumper material distance(mm) Power(Kw) Weight(Kg) Size L×W×H(mm)
3×1200 3 1200 20 2°25 350 3 1400 2015×1500×1300
3×1300 3 1300 20 2°25 350 3 1600 2115×1500×1300
3×1500 4 1500 20 2°25 350 3 1800 2515×1500×1300
4×2000 4 2000 20 1°30 500 5.5 3300 3200×1300×1610
4×2500 4 2500 20 1°30 500 5.5 3800 3580×1300×1610
4×3200 4 4000 20 1°30 600 7.5 5200 4380×1900×1600
4×4000 4 2000 20 1°30 600 7.5 6000 4650×1820×1700
6.3×2000 6.3 2000 24 2° 500 7.5 4500 3180×1765×1550
8×2000 8 2500 24 2° 500 11 5000 3180×1765×1550
6×2500 6 3200 24 2° 500 7.5 5400 3680×2200×2020
6×3200 6 2500 20 1°45 650 7.5 7500 4300×2250×2150
8×2500 8 2500 20 2°30 650 11 6500 3680×2330×2500
13×2500 13 2500 13 3° 700 15 13300 3680×2800×2450
16×2500 16 2500 30 3° 700 22 14500 3680×2800×2450
20×2500 20 2500 25 3° 750 22 20000 3950×2800×2900
Yingkou Changsheng Steel Structure Project Co.Ltd is a professional manufacturer and supplier of slitting machine (plate slitter) in China. Apart from auxiliary equipment products, like multifunction window - door taping machine, color coated steel coils, etc. we also offer EPS - rock wool sandwich panel machine like C purlin roll forming machine, Z purlin roll forming machine etc; high pressure polyurethane insulation painting machine including low pressure polyurethane foam machine and high pressure polyurethane foam machine; k-span machine, like automatic building machine, ultimate building machine and arch style buildings forming machine. With good quality and affordable price, the products produced by our company has exported Germany, Holland, India, Indonesia, New Zealand, Syria, United Arab Emirates, Russia, Kuwait, South Africa, and Bangladesh. If you are interested in our products, please contact us for details.
