Glazed Tile Roll Forming Machine

Introduction:
The glazed tile roll forming equipment from Changsheng Company can offer various titles, used to construct curvaceous roofs. The glazed tiles produced by this equipment are steady, polish, beautiful, old-timey and noble. This highly accurate machine uses PLC, moreover, the adjustable node length more than 120mm.
Components:
The glazed tile roll forming machine consists of the base, coils guiding equipment, roll forming system, pressing equipment, past-cutting equipment, hydraulic station, and computer control cabinet.

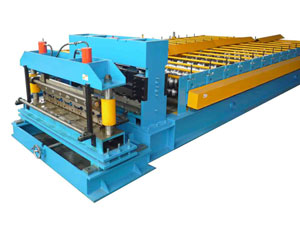

Glazed Tile Roll Forming Machine

Application:
The glazed tile roll forming machine is suitable to construct the roof of garden-like factory, hotel, exhibition center, villa, civil construction etc.
Main Technical Specification:
1. Installing Dimension: 11000mm x 1500mm x1400mm
2. Total Weight of Equipment: 11500kg
3. Electronically Controlled System: The whole machine is controlled by the PLC variable frequency control of the industrial computer.
4. Main Motor Power: 4KW Impact Type Cutting Power: 5.5KW.
5. Pitch Control: The pitch can be adjusted wilfully within the range of ≥ 250mm according to requirement.
6. Working Speed: 1500mm/min (taking the pitch of 250mm as example.)

Yingkou Changsheng Steel Structure Project Co.Ltd is a professional manufacturer and supplier of glazed tile roll forming machine in China. Apart from glazed tile roll forming machine like corrugated sheet roll forming machine840, deck floor roll forming machine, etc. we also offer auxiliary equipment products like automatic tube bending machine, plate bending machine, etc; high pressure polyurethane insulation painting machine including low pressure polyurethane foam machine and high pressure polyurethane foam machine; k-span machine, like automatic building machine, ultimate building machine and arch style buildings forming machine. With good quality and affordable price, the products produced by our company has exported Germany, Holland, India, Indonesia, New Zealand, Syria, United Arab Emirates, Russia, Kuwait, South Africa, and Bangladesh. If you are interested in our products, please contact us for details.
